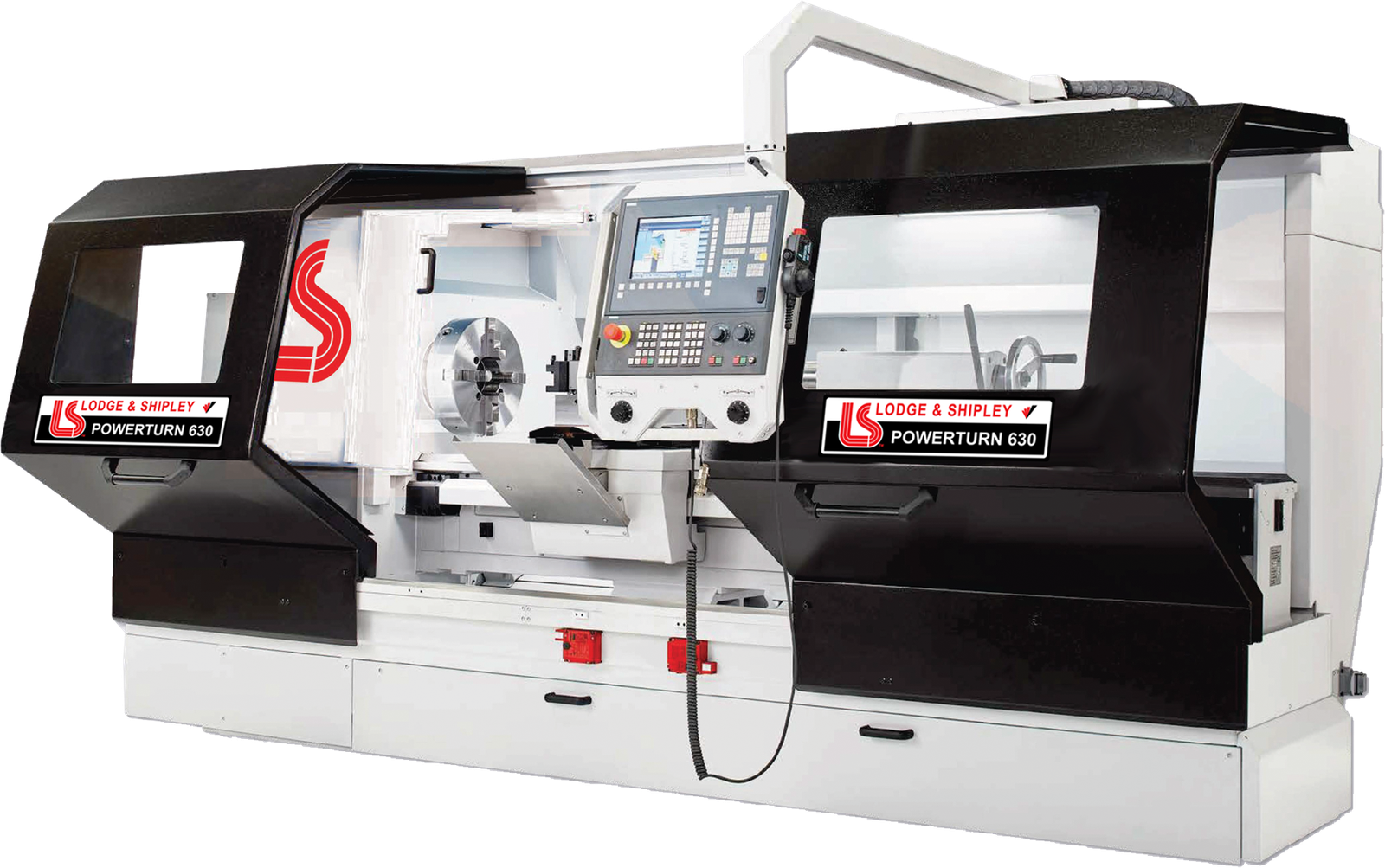

Lodge & Shipley 630

The POWERTURN 630/710 lathes are precise and of the highest quality that are made in Poland
and all components used in our machines come from our reputable suppliers. Standard equipment
makes the POWERTURN lathes an advanced machine that increases efficiency in production from the
very first day of use.

The standard equipment is extensive and makes the POWERTURN lathe an advanced work tool
that increases the efficiency of your production from the very first day of use. The very large
number of additional options that can be used allows special requirements to be met.

Surprisingly easy machine programming.
POWERTURN lathes with a Siemens Sinumerik One controller allow you to work in manual, semi-automatic and full CNC modes. An operator-friendly control system ensures comfortable and effective work.

Highlights

POWERTURN	630
Working Range	Turning Length / Center Distance	39.4″ (1000 mm) – 78.7″ (2000 mm) – 118.11″ (3000 mm) 157.5″ (4000 mm) – 236.2″ (5000 mm) – 236.22″ (6000 mm)
	Swing Over Bed	24.8″ (630 mm)
	Swing Over Cross Slide	14.6″ (370 mm)
	Travel of Cross Slide	15″ (390 mm)
	Spindle Nose DIN 55029	D1-11
	Max. Weight Between Centers	4409 lbs. (2000 kg)
Main Spindle	Spindle Bore	5.5″ (140 mm)
	Drive Power at 100% duty cycle	30 HP (22.5 kW)
	Speed Range	1: 2-560 RPM & 2: 200-2,500 RPM
