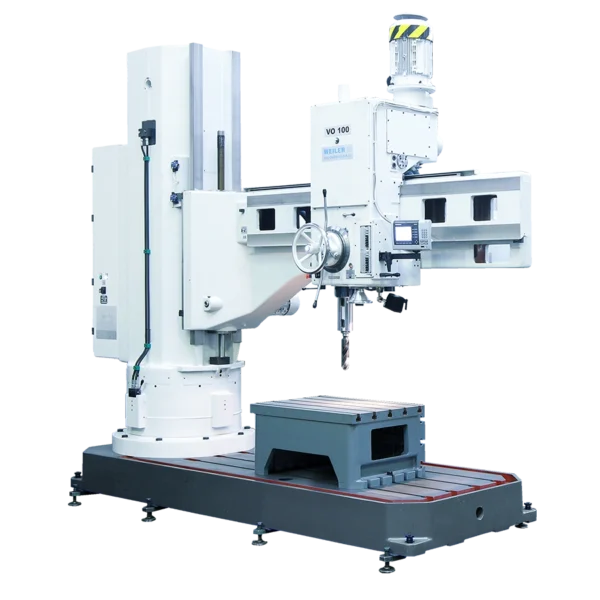

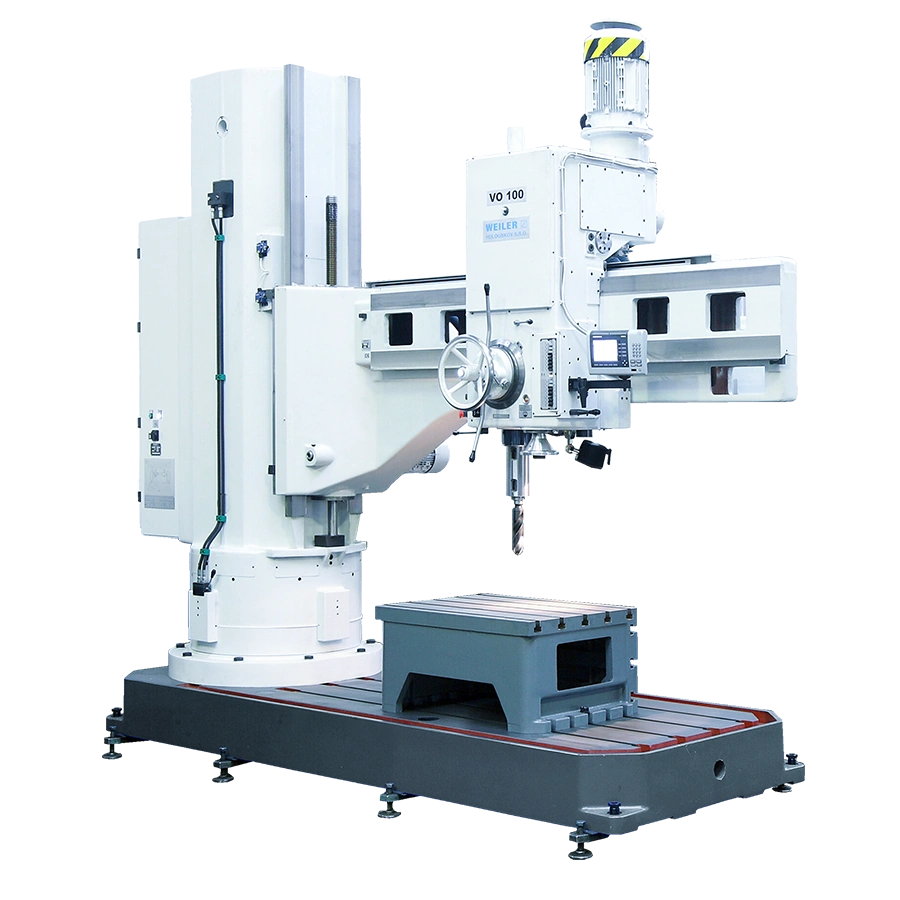

WEILER VO100
WEILER VO100
WEILER VO100
-
Ideal for drilling, boring, reaming, and thread cutting in one-off as well as batch production.
Unique features:
- Easy to operate, robust and reliable
- Powerful for bore holes up to 100 mm diameter in steel
- Drilling carriage movement up to 2,015 mm
- Ideal for all types of drilling work
- Clearly structured operating panel
- Acceptance according to ISO 2423 (corresponds with DIN 8625)
- Distance from spindle nose to base plate 570mm min. / 2200mm max.
- Spindle working range 550mm min. / 2565mm max.
- Spindle stroke 475mm
Highlights
| MODEL | WEILER VO100 |
|---|---|
| Drilling diameter in steel max. | 3.93″ (100mm) |
| Drilling diameter in grey cast iron, 250 N/mm2 max. | 4.33″ (110mm) |
| Thread cutting in steel, 600 N/mm2 max. | 76 M |
| Vertical arm travel max. | 45.47″ (1,155mm) |
| Drilling head travel on radial arm max. | 79.33″ (2,015mm) |
| Taper in spindle | 6 MK |
| Spindle travel max | 18.70″ (475mm) |
| Number of spindle speeds | 32n |
| Spindle speed range | 9 – 2.800 min-1 |
| Number of feed rates | 16 n |
| Feed rate range | 0.0013 – 0.1102in/rev (0.035 – 2,8mm/rev) |
| Power of Main Drive | 11,0 (15,0) kW |
| Spindle reach, max/min. | 100.98/21/65″ (2.565/550 mm) |
| Distance spindle nose / mounting plate max./min. | 86.61/22.44″ (2.200/570 mm) |
| Weight | 26,676 lb (12,100kg) |
