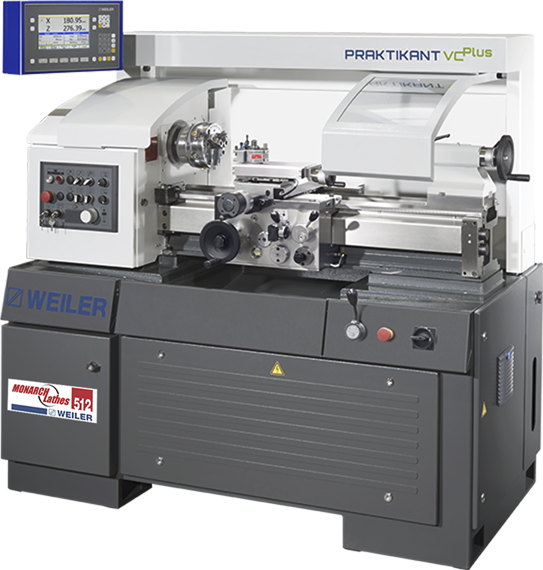

WEILER PRAKTIKANT VCPLUS/512
WEILER PRAKTIKANT VCPLUS/512
WEILER PRAKTIKANT VCPLUS/512
-
Brings a new dimension to engine lathes. High quality, energy-efficient, precise and universally usable in production, apprenticeships and vocational training.
It impresses through:
- Sophisticated technology
- Extreme accuracy
- Durability
- Field-proven ergonomics
- Extremely small footprint
- Extensive range of accessories
Controls
- Large, easy-to-read 8″ color screen
- 3-axis display for bed, cross and top slides
- Electronic turning against the stop (optional 8x)
- Taper turning assistant (optional)
- Input of feeds and thread pitches
- Electronic limit switch device when thread cutting
- Tool technology memory for feed, turning speed and cutting speed of 99 tools
- Main spindle power readout
- Automatic readout of the maintenance interval
- Context help menu
Highlights
| MODEL | WEILER PRAKTIKANT VCPLUS |
|---|---|
| Center height | 6.29″ (160mm) |
| Swing over bed | 12.59″ (320mm) |
| Swing over cross slide | 7.48″ (190mm) |
| Distance between centers | 25.59″ (650mm) |
| Spindle nose acc. To DIN 55027 | Gr. 5 |
| Spindle bore | 1.69″ (43mm) |
| Spindle diameter in front bearing | 2.75″ (70mm) |
| Drive power (60%/100%) duty cycle | -/8 kw |
| Speed range | 25-5.000 min-1 |
| Number of speeds | Stepless |
Learn more about this product
See our PDF about this product for all specifications
