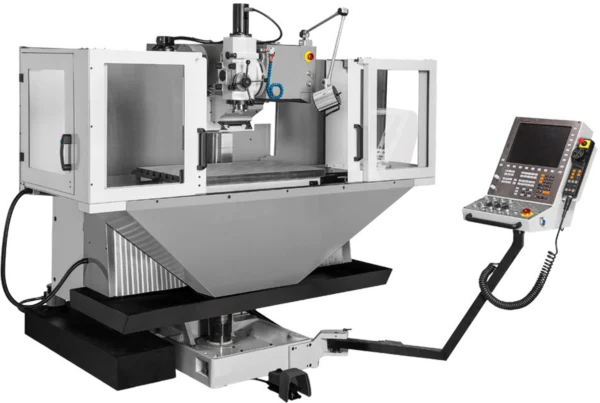

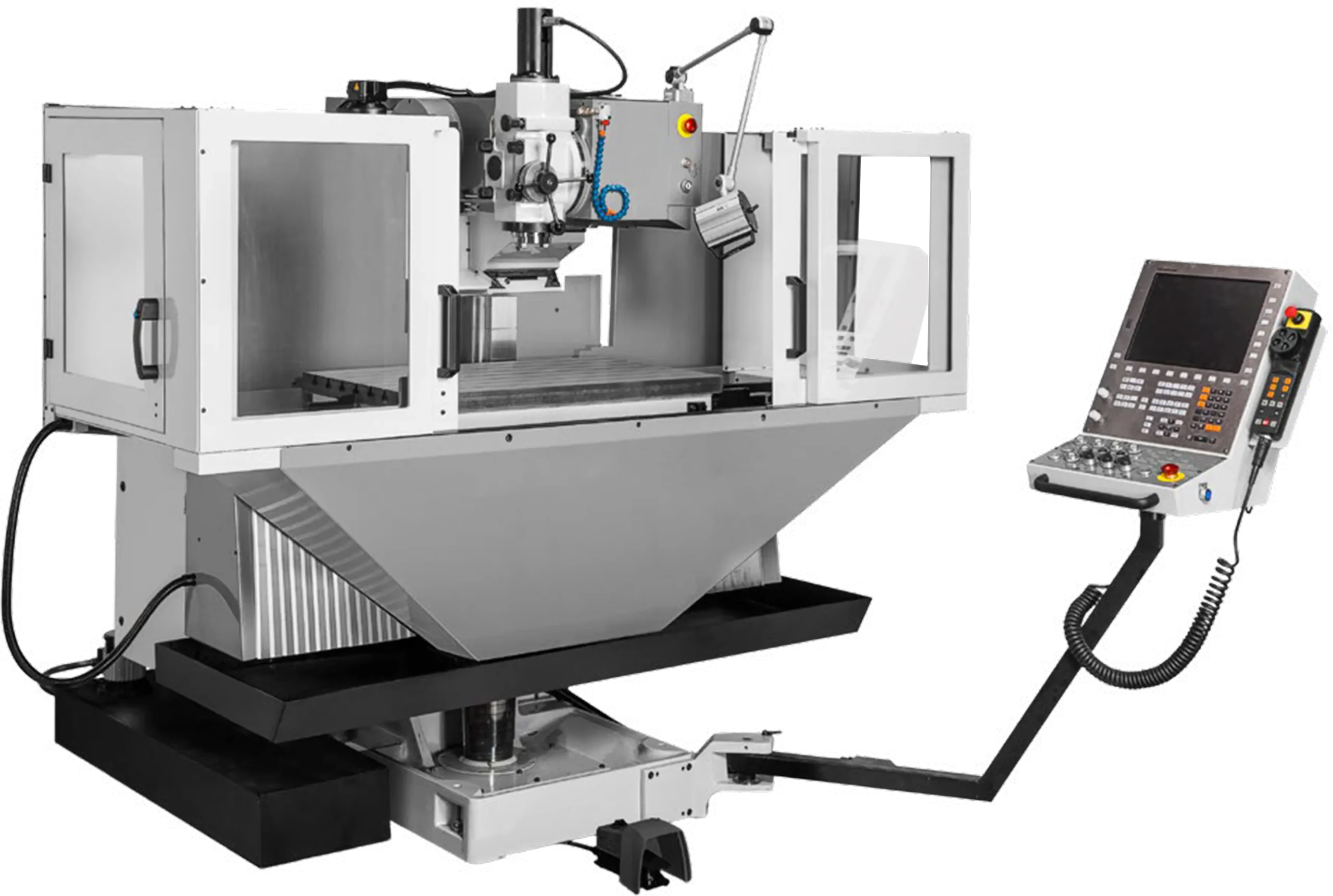

The machine is built according to the unique ABENE ”angular frame plane” design concept, which has the spindle head sideways mounted. This radical (World Exclusive) feature allows rapid and precise uniform changing from Vertical to Horizontal mode. The ergonomically positioned handles, along with the benefits of the standard Heidenhain control TNC-620, (also available with Fanuc or Siemens controls) allows the VHF-380 TI to let you decide how to best turn your idea into a presentable product with maximum economy and efficiency.
Highlights
Technical Info
| VHF-380 TI | VHF-380 TI/BS | Unit | |
|---|---|---|---|
| Table | |||
| Table Horizontal | 900 x 500 | 900 x 500 | mm |
| T-slot | 7 x 14 H7 | 7 x 14 H7 | mm |
| Max Load | 350 | 350 | Kg |
| Movement | |||
| Longitudinal | 800 | 800 | mm |
| Cross | 500 | 500 | mm |
| Vertical | 475 | 475 | mm |
| Feed Stepless (Z) | Stepless | Stepless | |
| Rapid feed X,Y | 6000 | 6000 | mm/min |
| Rapid feed Z | 3000 | 3000 | mm/min |
| Feed.motor X,Y,Z | 4,2 (13) | 4,2 (13) | Nm |
| Accuracy | |||
| Positioning | +/- 0.001 | +/- 0.001 | mm |
| Repeatability | +/- 0.005 | +/- 0.005 | mm |
| Spindle | |||
| Spindle speed | 55-4000 | 55-4000 | rpm |
| Spindle | ISO40 / DIN2080 | ISO40 / DIN2080 | |
| Spindle speeds n:o | Automatic | Automatic | 2 Steps |
| Spindle power | 7.5 | 7.5 | kW |
| Spindle head swivel | 0-140 | 0-140 | degrees |
| Spindle quill | — | 75 | mm |
| Hand wheel | — | 3 (option) | mm/rev |
| Installation Data | |||
| Power requirement | 25/17 | 25/17 | A/kVA |
| Air (if tool clamping) | 6 | 6 | Bar |
| Dimensions LxWxH | 2300x2450x2200 | 2300x2450x2200 | mm |
| Gross weight | 2850 | 2850 | kg |
| Net weight | 2650 | 2650 | kg |
