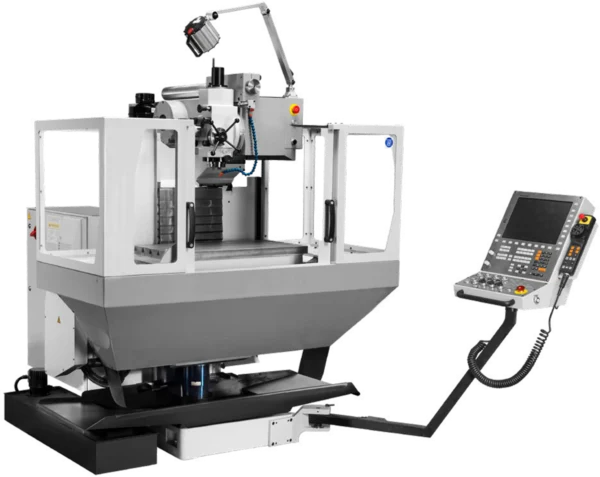

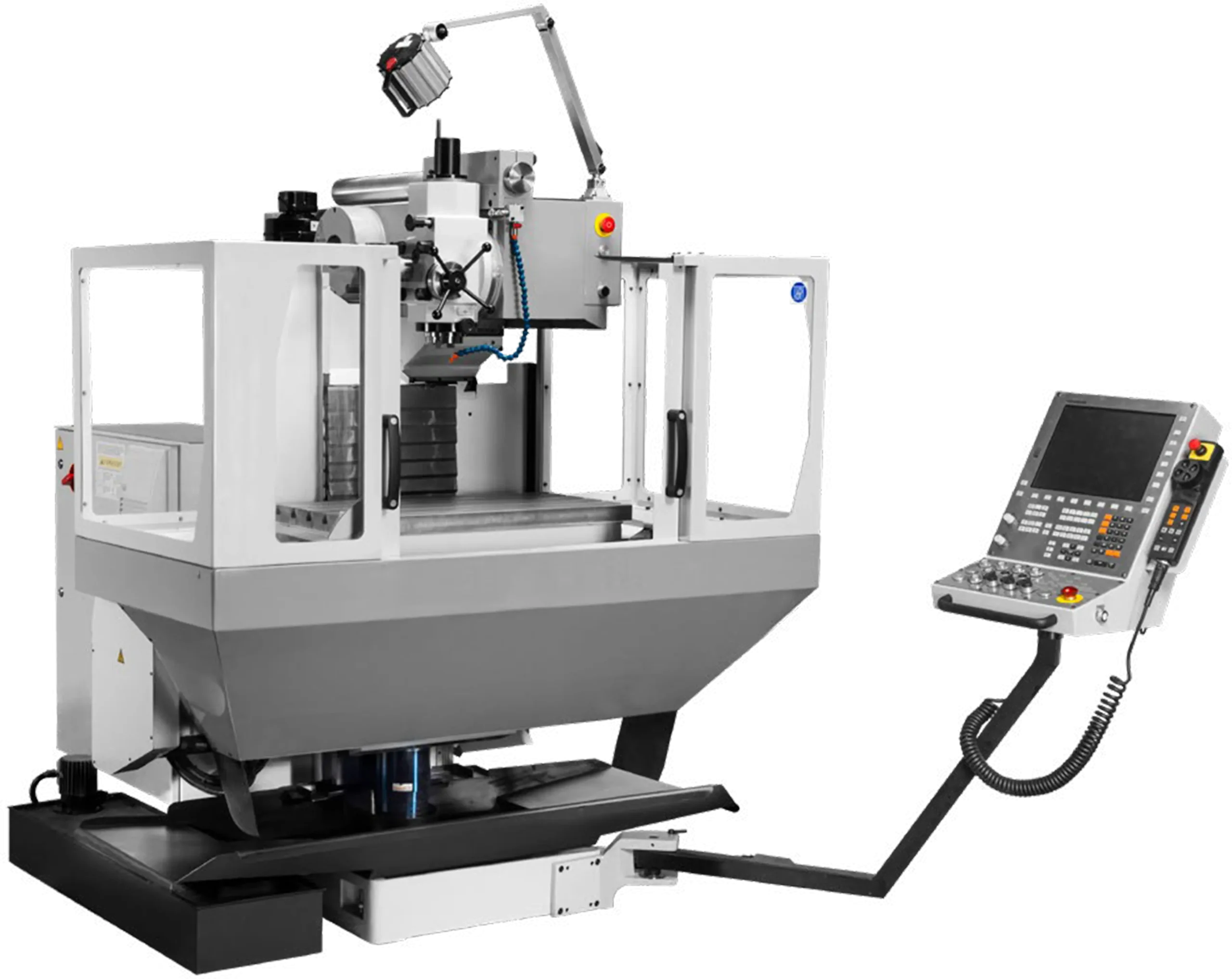

The machine is built according to the unique ABENE ”angular frame plane” design concept, which has the spindle head sideways mounted. This radical (World Exclusive) feature allows rapid and precisely uniform changing from Vertical to Horizontal mode. The ergonomically positioned handles, along with the benefits of Heidenhain control TNC-620 allows the VHF-330 TI to let you decide how to best turn your idea into a presentable product with maximum economy and efficiency.
Highlights
Technical Info
| VHF-330 TI | VHF-330 TI/BS | Unit | |
|---|---|---|---|
| Table | |||
| Table Horizontal | 800 x 400 | 800 x 400 | mm |
| T-slot | 5 x 14 (1pc H7) | 5 x 14 (1pc H7) | mm |
| Max Load | 200 | 200 | Kg |
| Movement | |||
| Longitudinal | 600 | 600 | mm |
| Cross | 500 | 500 | mm |
| Vertical | 450 | 450 | mm |
| Feed Stepless (Z) | Stepless | Stepless | |
| Rapid feed X,Y | 5000 | 5000 | mm/min |
| Rapid feed Z | 2000 | 2000 | mm/min |
| Feed.motor X,Y,Z | 3,4 (11) | 3,4 (11) | Nm |
| Accuracy | |||
| Positioning | +/- 0.001 | +/- 0.001 | mm |
| Repeatability | +/- 0.005 | +/- 0.005 | mm |
| Spindle | |||
| Spindle speed | 55-4000 | 55-4000 | rpm |
| Spindle | ISO40 / DIN2080 | ISO40 / DIN2080 | |
| Spindle speeds n:o | Freq. controlled | Freq. controlled | 2 Steps |
| Spindle power | 7.5 | 7.5 | kW |
| Spindle head swivel | 0-140 | 0-140 | degrees |
| Spindle quill | — | 75 | mm |
| Hand wheel | — | 3 (option) | mm/rev |
| Installation Data | |||
| Power requirement | 25/20 | 25/20 | A/kVA |
| Air (if tool clamping) | 6 | 6 | Bar |
| Dimensions LxWxH | 1810x1710x2045 | 1810x1710x2045 | mm |
| Gross weight | 2750 | 2750 | kg |
| Net weight | 2550 | 2550 | kg |
